1200W 1400W 1600W 2000W 2400W 2800W Micro Inverter Solar Grid Tie Microinverter IP65 Self Cooling 120V/220V Automatic Identification Power Inverters,Grid-Connected Mode,2000W

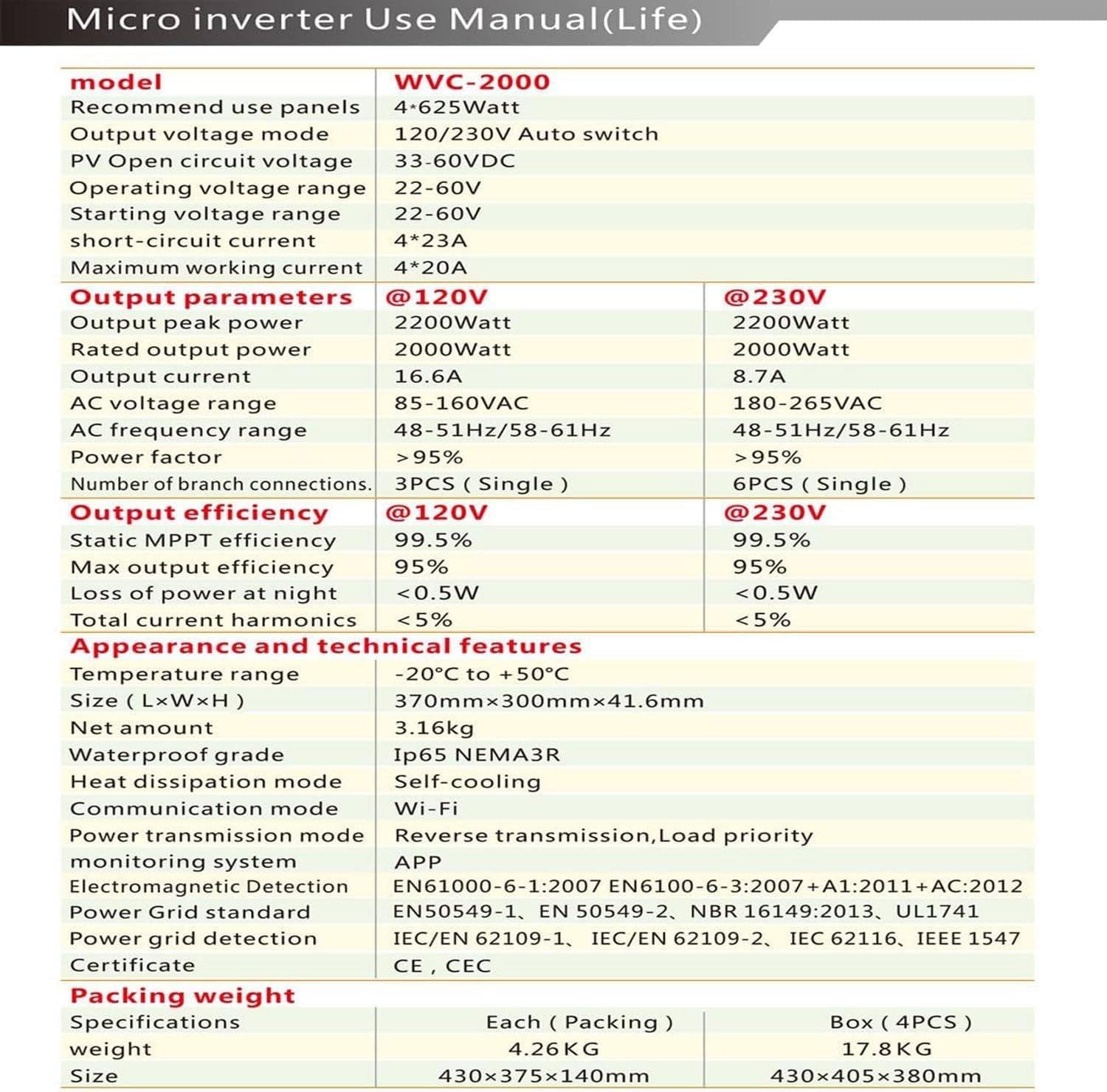

This latest upgraded micro inverter with MPPT and automatic output voltage identification will be your best choice! ! ! !Specifications:Project Type: Micro Solar InverterMaterial: aluminum alloy + electronic componentsModel: WVC-1200/1400/1600/2000/2400/2800WOutput voltage mode: 120/230V automatic identificationMinimum/maximum startup voltage: 22--60VWaterproof rating: lp65 Nema4xCooling method: Self-coolingMonitoring systems: mobile APP, PCPower transmission mode: reverse transmission, load priority useDimensions: 370x300x41.6mmNet weight: 3kgProduct use: solar power generation equipmentApplicable scene: solar power generation systems (roof, outdoor)Packing List:1 x Micro Inverter1 xAC cable1 x English manual1 x fixing screwInverter installation steps:Step 1: Use the screws provided with the machine to fix the inverter on the photovoltaic panel bracket.Step 2: Connect the positive and negative poles of the DC connection plug of the photovoltaic panel to the DC input terminal of the inverter.Step 3: Open the waterproof cover of the AC output connector of the inverter, and connect the AC cable to the waterproof AC socket.Step 4: Connect the AC output line to the AC main line;Step 5: Repeat steps 1-3 to install and connect all inverters;Step Six: Connect the main AC cable to the grid and start your green energy journey.>>>AttentionPlease read this manual and pay attention to the installation details before installing the WVC series microinverter. To reduce the risk of electric shock, always follow the instructions to ensure safe installation and operation.

• 【MICRO SOLAR GRID TIE INVERTER】 Micro solar grid-connected inverter is to convert the electricity of solar panel into usable electricity. Support 120/230V AC voltage automatic identification, voltage / frequency adaptive. It adopts self-cooling heat dissipation method, which has a long service life and is more worry-free with mobile APP monitoring.
• 【MPPT FUNCTION】 The solar inverter has MPPT function, which can continuously track the maximum power point and charge the battery with the maximum power. The power collected from solar panels can be optimized. Capture and collect sunlight efficiently.
• 【SUSTAINABLE USE】 Very suitable for photovoltaic solar power generation systems, with low THD, less wear and tear, and can withstand strong inductive loads. Small interference, communication and precision equipment. Also recommended for most cordless tools.
• 【WATERPROOF GRADE IP65】 The solar grid-connected micro-inverter is equipped with IP65 waterproof, which completely prevents raindrops from entering, and the aluminum alloy shell can effectively prevent rainwater from eroding the surface. The input and output are completely isolated from power consumption, which is more secure and reliable.
• 【INTELLIGENT MONITORING】 The inverter can collect real-time data with intelligent monitoring systems, can be controlled start-up / shutdown / power regulation. easy to use, is an excellent photovoltaic power generation systems.
