ANNKE 3K 8CH 4PCS Dual Light Cameras Wired Security System, Color & IR Night Vision, f/1.2 Super Aperture, 4in1 Output Signal, Microphone, IP67, AI 4K DVR, Smart Person/Vehicle Detec, 2TB HDD

"<p><b>Description:</b></p> <p><b>DVR </b></p> <p>· 4K(8MP) high definition live viewing </p> <p> · 4K(8MP) recording &amp; playback </p> <p>· Deep learning-based motion detection 2.0 for all analog channels </p> <p>· Deep learning-based perimeter protection</p> <p>· Advanced H.265+ Video Compression</p> <p>· Aduio via coaxial cable</p> <p>· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1 </p> <p>· Supports iPhone、iPad、Android mobile remote monitoring</p> <p>Video &amp; Audio:</p> <p>Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264</p> <p>Video Input: ""8CH Analog HD/Analog + 4CH (up to 12-ch) IP (Enhanced IP mode on:</p> <p>8-ch (up to 16-ch), each up to 4 Mbps)""</p> <p>Video Output: VGA up to 1080p/60 Hz; HDMI up to 4K (3840 × 2160)/30 Hz</p> <p>Audio Input/Output: ""Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)/8-ch via coaxial cable</p> <p>Output:1-ch, RCA (2.0 Vp-p, 1 KΩ)""</p> <p>Supported Camera Types: ""Support HD TVI Input: 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 </p> <p>MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,</p> <p>1080p@30 fps, 1080p@25 fps, 720p@60 fps, </p> <p>720p@50 fps, 720p@30 fps, 720p@25 fps</p> <p>Support AHD Input: 5 MP@20 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;</p> <p>Support HD CVI Input: 4 MP@30 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;</p> <p>Support CVBS Input:PAL/NTSC""</p> <p>Analog HD Playback Resolution: ""4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps</p> <p>1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)""</p> <p>IP Camera Input: 4-CH (up to 12-ch)</p> <p>IPC Recording Resolution: Up to 8MP</p> <p>IPC Playback Resolution: Up to 8MP</p> <p>Max Playback Channel: 8CH </p> <p>Motion Detection 2.0: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.</p> <p>Smart event: Line crossing &amp; Intrusion Detection</p> <p>ONVIF: Support</p> <p>Hard Drive:</p> <p>HDD: 1 SATA Interface</p> <p>HDD Capacity: Up to 10 TB Capacity</p> <p>General:</p> <p>Working Temperature: 14 °F – 131 °F/-10 °C – 55 °C</p> <p>Dimensions (W X H X D): 315 X 242 X 45 mm</p> <p>Weight (Without Hard Disk) : ≤ 2 kg (4.4 lbs.) (Without HDD)</p> <p><b>Analog HD Camera </b></p> <p>""High quality imaging with 3K, 2960 × 1665 resolution</p> <p>2.8 mm fixed focal lens@F1.2</p> <p>High quality audio with audio over coaxial cable, built-in mic</p> <p>Up to 25 m IR distance for bright night imaging</p> <p>Up to 20 m white light distance for bright night imaging</p> <p>One port for four switchable signals (TVI/AHD/CVI/CVBS）</p> <p>Water and dust resistant (IP67) ""</p> <p>Image sensor: 3K CMOS Image sensor</p> <p>Video Resolution: 2960 (H) × 1665 (V) (16:9)</p> <p>Signal System: PAL/NTSC</p> <p>Frame Rate: ""TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps</p> <p>AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps</p> <p>CVI: 4 MP@25 fps/30 fps</p> <p>CVBS: PAL/NTSC""</p> <p>Lens: 2.8mm</p> <p>Min.Illumination: Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR</p> <p>Angle of View: Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°</p> <p>Supplement Light type: 1 white Light &amp; 2 EXIR</p> <p>Supplement Light Range: IR : Up to 25 m, white Light : Up to 20 m</p> <p>Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.</p> <p>Wide Dynamic Range: Digital WDR</p> <p>Audio: Built-in mic</p> <p>IR Cut Filter: Yes</p> <p>Video Output: BNC, switchable TVI/AHD/CVI/CVBS</p> <p>General:</p> <p>Housing: Plastic </p> <p>Color: White</p> <p>Operating Power: 12 VDC ± 25%</p> <p>Consumption: Max. 2.9 W</p> <p>Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C</p> <p>Indoor/Outdoor: Indoor/Outdoor</p> <p>Weatherproof Rating: IP67</p> <p>Dimension (L x W x H): 138.8 mm × 60.9 mm × 57.9 mm (5.47"" × 2.4 "" × 2.3"")</p> <p>Weight: Approx. 155 g (0.34 lb.)</p>"

• Capture Clear Night Detail by Smart Dual Light: Default smart dual light mode, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear color image. In addition, you can also choose full infrared or full white light mode. Infrared fill light is up to 25 m, up to 20 m white light distance for bright night imagingNote: A DVR that supports Al is required to realize the dual light function.

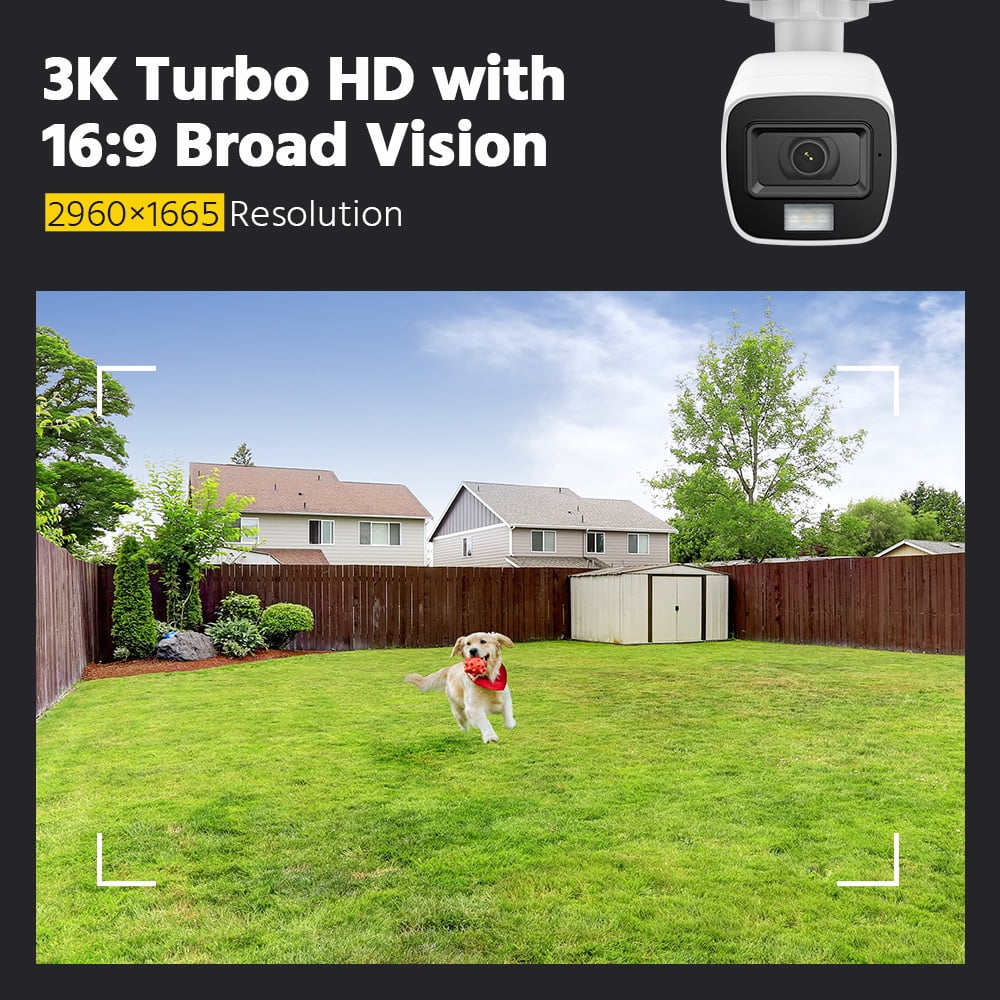

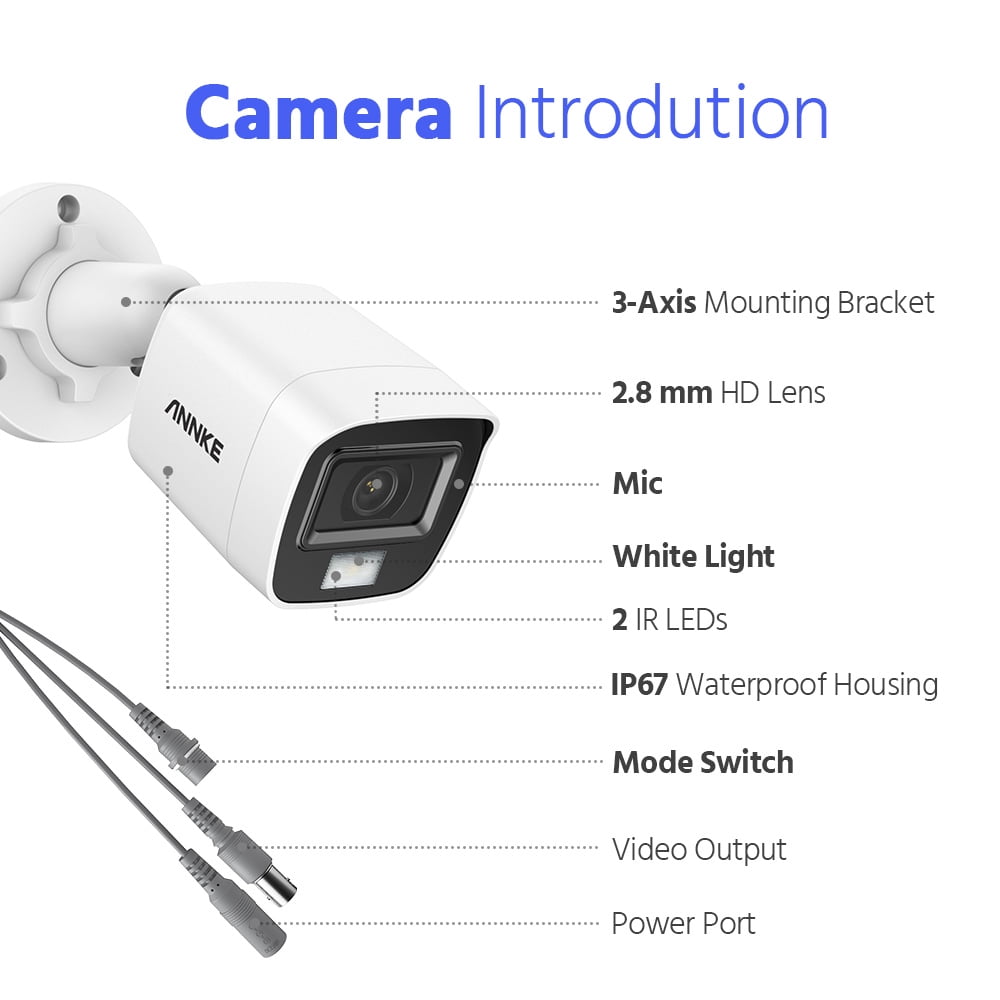

• Enhanced Clarity with 3K Super HD: Our camera combines DWDR, AGC, BLC, and HLC technologies with 3K Super HD resolution (2960x1665@2Ofps) and a2.8mm f/1.2 lens for stunning 129° FoV. Enjoy sharper, more accurate images day or night, perfectly suited for mainstream displays.
•
  Audio Recording with Built-in Mic: The camera has a built-in microphone, allowing you to hear and record crisp, clear audio by coaxial cable, and the audio can be turned off in the menu.

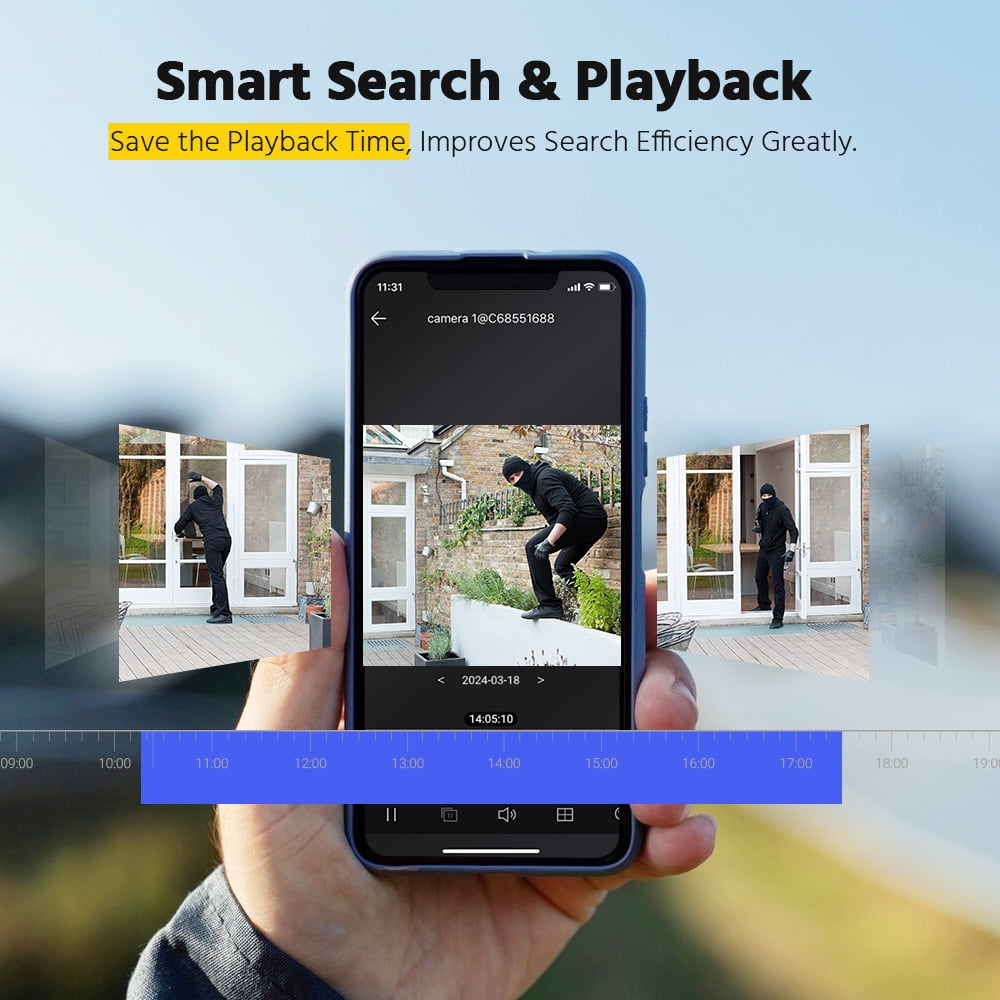

• Smart Search & Playback Function: The smart search can fast-forward the still images and show the motion-triggered videos directly in the selected channel and time period. Provide you with pleasant smart playback experience, making the playback more efficient.
• 8-Channel 5-in-1 DVR: The 8CH ON-VIF DVR works with all 4K TVI, 5MP AHD, 4MP CVI and CVBS security cameras from different brands.This powerful DVR also supports IP security cameras(up to 8MP, The default is 4pcs IP Cam, and the maximum support is 12 pcs IP Cam.)) . Create the most integrated security camera system with this DVR.
• 100ft Remarkable Night Vision: Smart IR filters will automatically turn on to deliver clear B&W pictures at night. The excellentEXIR 2.0 technology provides more uniform IR coverage and birghtness, for clearer night vision picture.Night vision covers up to 100ft/30m.
• Smart Person/Vehicle Detection: Powered by smart motion detection 2.0 technology, this system can tell people and vehicles from other objects, By analyzing human and vehicle shapes on board, The DVR will push instant app pushes & email alerts with snapshots, reducing 99% of false alertscaused wind, rain, leaves, animals, etc.
