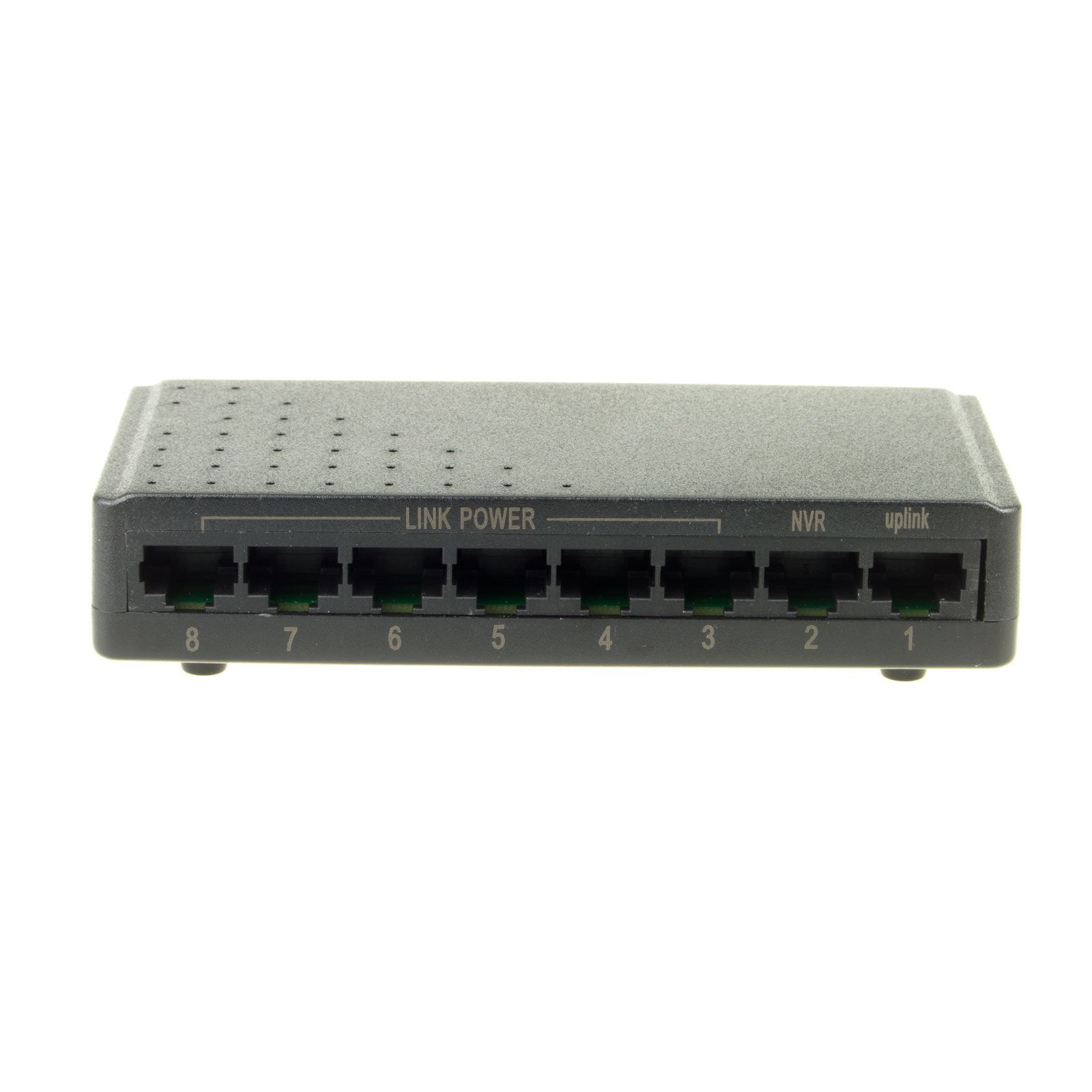

DSLRKIT 72W 8 Ports 6 PoE Injector Power Over Ethernet Switch with 48V 2A Power Adapter

This is an Passive Power Over Ethernet of 8 port 10 / 100Mbps-T Ethernet switches, including 6 unsolicited PoE Ethernet ports and 1 Uplink ports. DC port apply 9-55V power supply adapter(not included), any one of the 4 port can provide output power, each Ethernet port can provide network transmission speeds of up to 10 / 100Mbps , with Cat5 / 5e / 6 network cable.<br><br> This POE switch only support 10/100M connection, PoE ports do not support Gigabit ethernet connection, because "Power Link 3~8" port using 4,5,7,8 pin as power transfer, Please do not connect any "NONE PoE gigabit ethernet device and Uplink device" on "Power Link 3~8" port, this will damage your device.<br><br> Gigabit(1000Mbps) ethernet Uplink device can only access "Up link" port, Please do not access "Power Link 3~8", this will damage your device.<br><br> Compatible all 802.3af/at device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch...<br><br> Item Included:<br> DSLRKIT PMID6P2U 8pots 6PoE Passive PoE switch x1<br> AC Power Adapter(DC OutPut: 48V/2.0A) x1<br> AC Power Cable x1

• 8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 6-Ports PoE function
• Midspan Mode-B Unsolicited Power(4,5+/7,8-)
• Supports PoE power up to 72Watt(max.90watt) for all PoE ports, Per port Max 48V 1A or 48Watt
• Each port supports auto MDI/MDIX, so there is no need to use cross-over cables
• Full/half duplex transfer mode for each port
