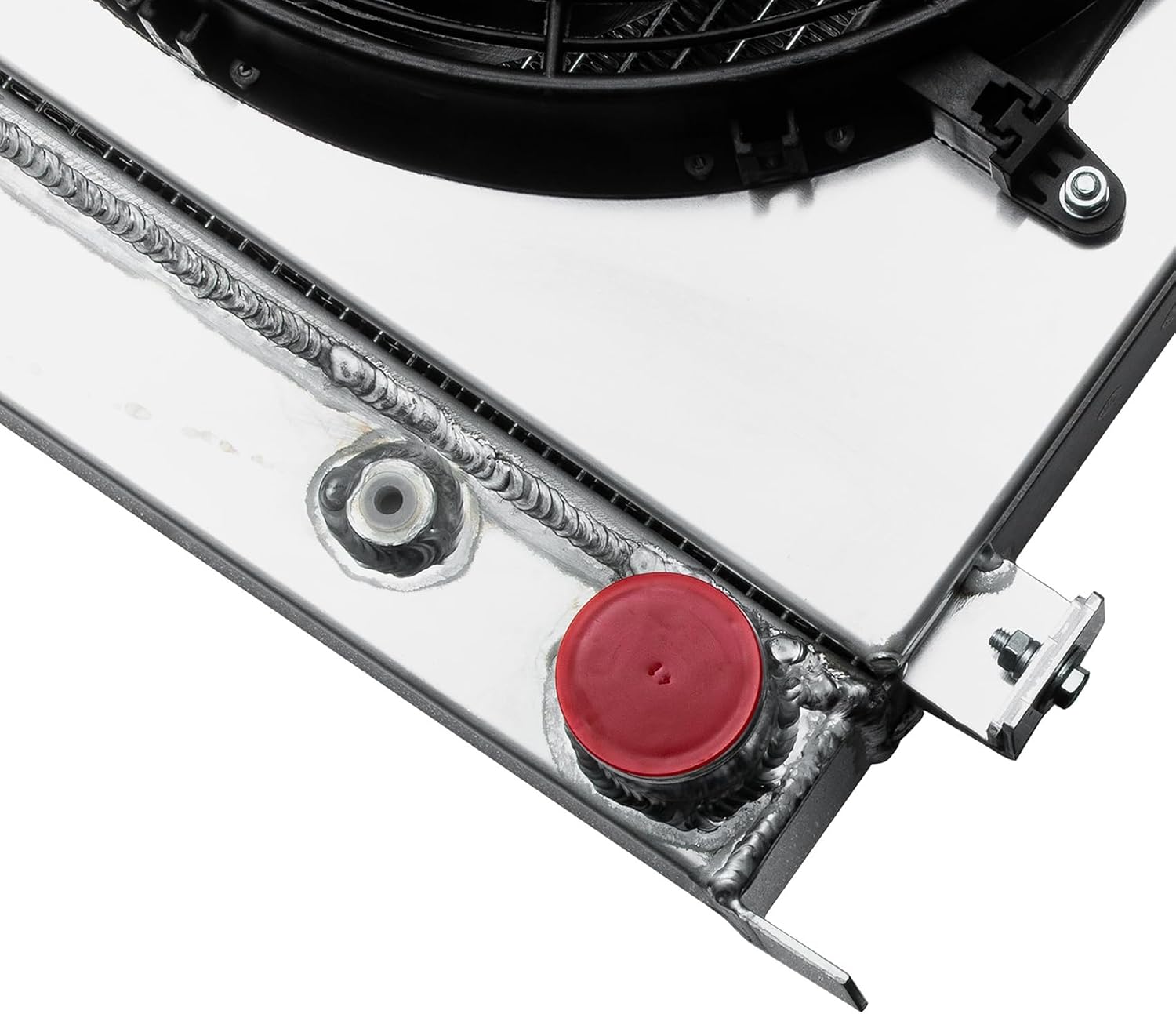

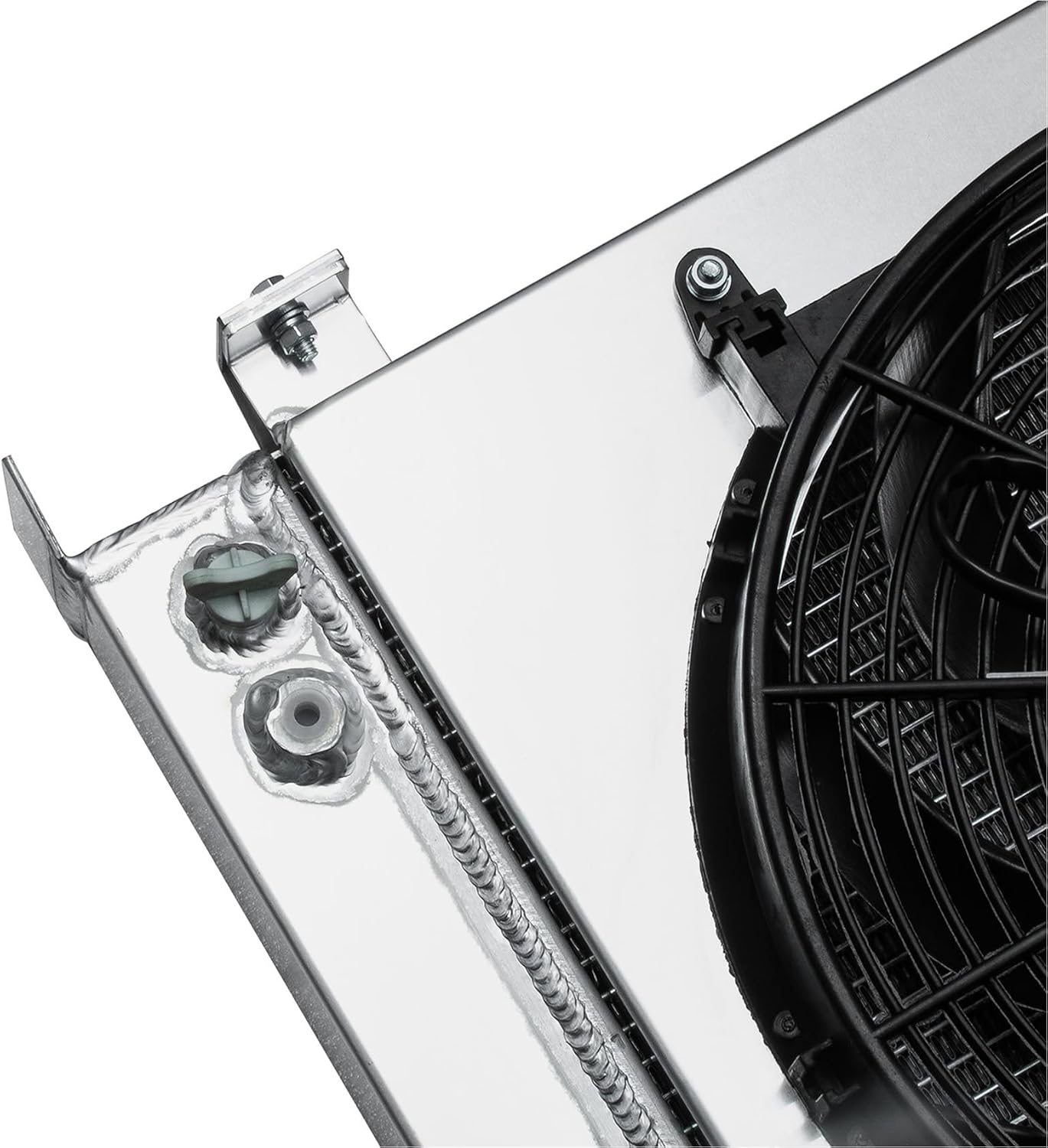

Hot Rod Radiator Compatible with 1928-1932 Ford Chopped Hot Rod Chevy V8, 3 Row Aluminium Radiator + Fan + Shroud + Relay
Product details
| Management number | 219823438 | Release Date | 2026/05/03 | List Price | $115.60 | Model Number | 219823438 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Radiator Specifics: Condition: 100% Brand New Material: Aircraft T-5052 grade aluminum tank & core Row: 3 Row Core Size: 17'' H x 17.2'' W x 1.73'' Thickness Overall Size: 22.4''H x 19.7''W x 5.5'' T Upper Inlet: 1.5 inch located on the driver side Lower Outlet: 1.77 inch located on passenger side Transmission Oil Cooler: 26x250x1/8-27NPT(T) OEM Style Brass Petcock Drain CNC Machined Filler Neck and Cap Fan Spec: Maximum Fan CFM: 2200±200 FAN Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1930-1932 FORD MODEL 3.3L CHEVY ENGINES 1933-1938 FORD MODEL SERIES CARS CHEVY ENGINES PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
- Core Size: 17'' H x 17.2'' W x 1.73'' Thickness, Overall Size: 22.4''H x 19.7''W x 5.5'' T
- Upper Inlet: 1.5 inch located on the driver side, Lower Outlet: 1.77 inch located on passenger side
- Transmission Oil Cooler: 26x250x1/8-27NPT(T)
- 100% brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity
- Shroud fan provides protection and extra heat heat dissipation for the radiator
| Brand | HKAUTOPART |
|---|---|
| Model | Radiator for Hot Rod |
| Exterior | Polished |
| Item Weight | 18.46 pounds |
| Manufacturer | HKAUTOPART |
| Item model number | HKAUTOPART-0455 |
| Package Dimensions | 25.25 x 23 x 8.25 inches |
| Manufacturer Part Number | HKAUTOPART-0455 |
