LCR Meter, ET4401 OR ET4410 LCR Meter 100K 0.1% Digital Capacitor Measuring LCR Brid Resistance Inductance Capacitance Multi Tester,Digital Bridge(ET4401)

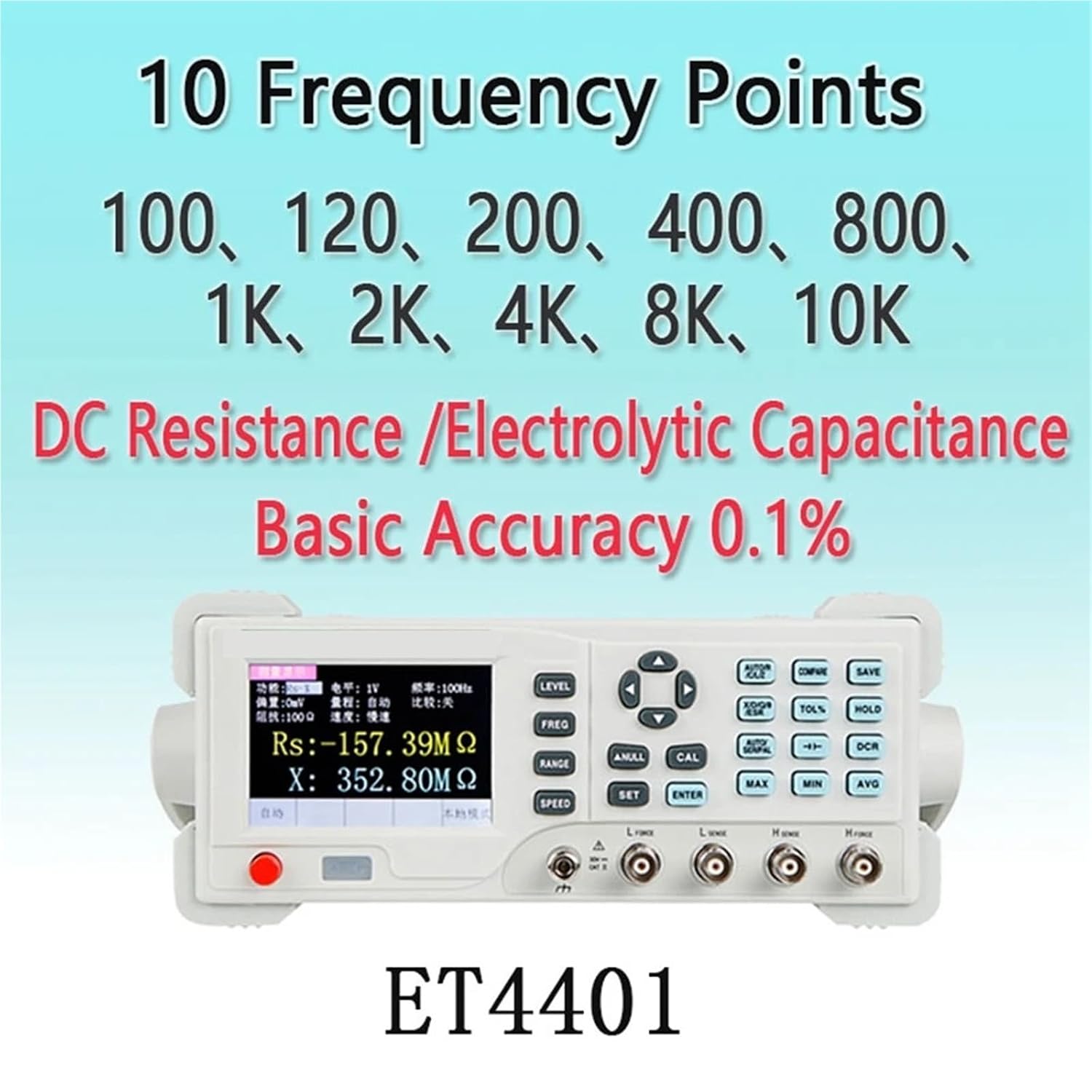

ET44series LCR digital brid is designed using automatic balance brid principle component parameter analyzer, the tests of 10 hz ~ 100 KHZ bandwidth, 0.1% of the basic classification function provided by the accuracy of measurement and instrument for the vast majority of components and materials to provide accurate and complete the survey and analysis, is widely used in product research and development, components such as incoming inspection, product online applications.Product features:Measuring frequency up to 100 KHZ,Test level 10 -2000 mv,Support dc resistance (DCR), electrolytic capacitor measurementThe internal bias output 0 mv -1500 mv3.5 inch TFT display, five showsCommunications: USB Device, RS232 , Handle,Data record function (maximum, minimum, avera)Support SCPI communication protocolProvide the system Setting, can according to need to configure the Chinese or English, buzzer, screen brightness, etcBasic measurement accuracy of 0.1%Manual and automatic ranWith open circuit and short circuit calibration functionComparator separation (5), alarm function

• High Precision and Wide Frequency Ran: The ET44 series offers a basic accuracy of 0.1% with a measurement frequency ran of 10 Hz to 100 kHz, making it for accurate and complete testing across a wide variety of components and materials
• Comprehensive Measurement Capabilities: It supports DC resistance (DCR), electrolytic capacitor measurement, and features adjustable test levels from 10 mV to 2000 mV, accommodating various testing needs
• Flexible Bias Output: The internal bias output is adjustable from 0 mV to 1500 mV, providing greater flexibility for different testing environments and component requirements

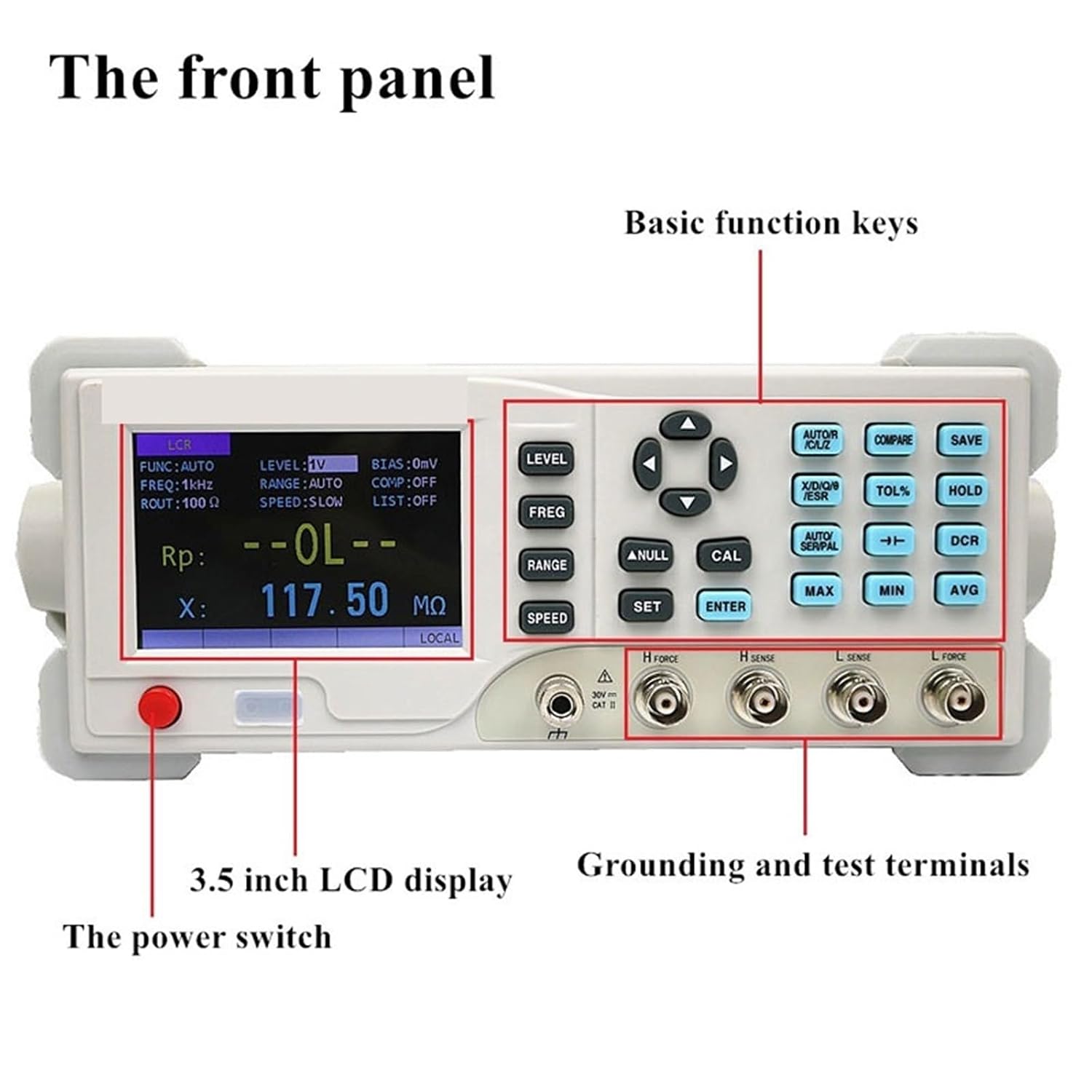

• User-Friendly Interface & Customization: The 3.5-inch TFT display provides five measurement shows, and the device supports customizable setting such as langua (Chinese/English), buzzer, and screen brightness for a personalized user experience

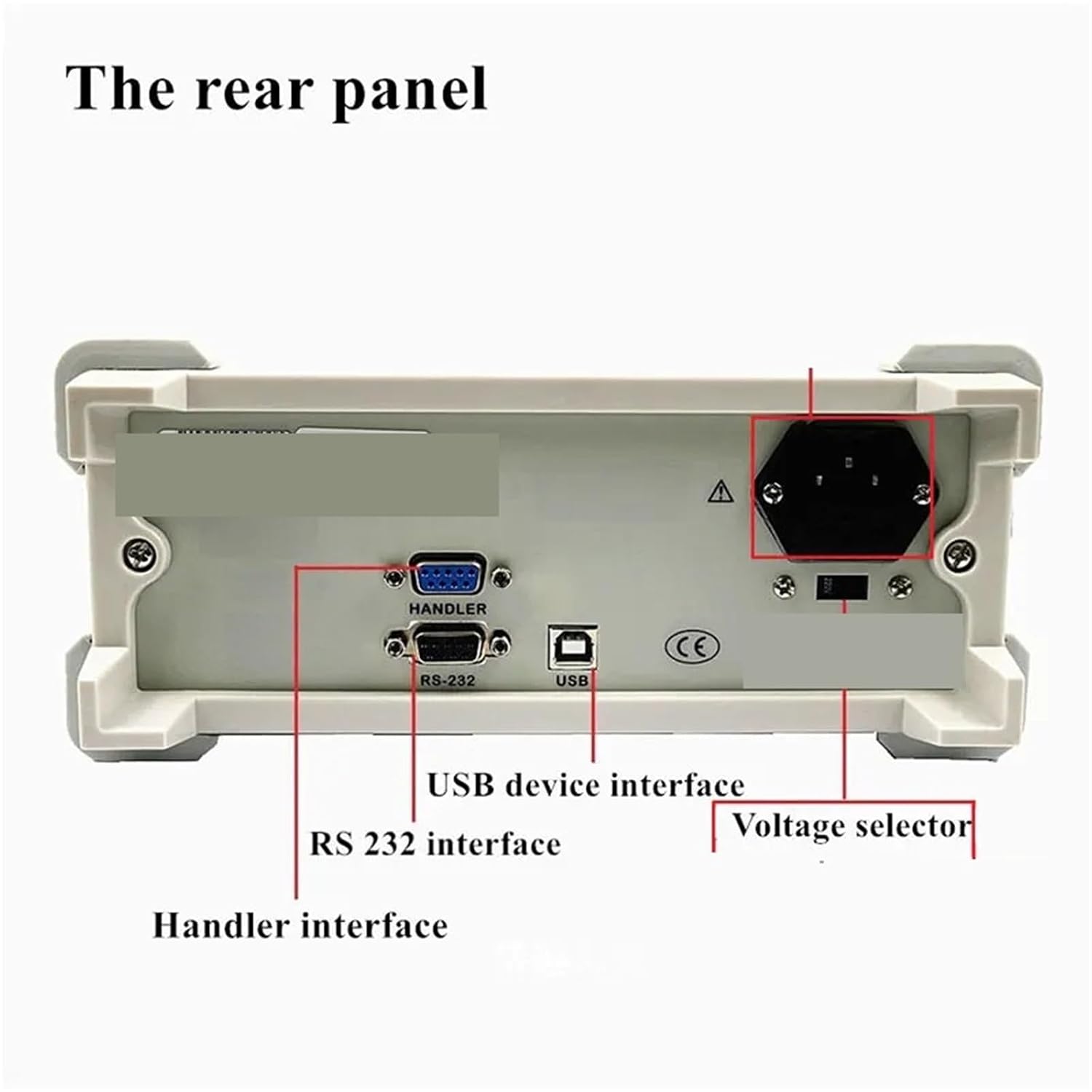

• Advanced Communication & Data Logging: The ET44 series features USB Device, RS232, and handle communication interfaces, as well as data record functions (maximum, minimum, avera) for effective tracking and analysis. It also supports the SCPI communication protocol for easy integration with automated systems
