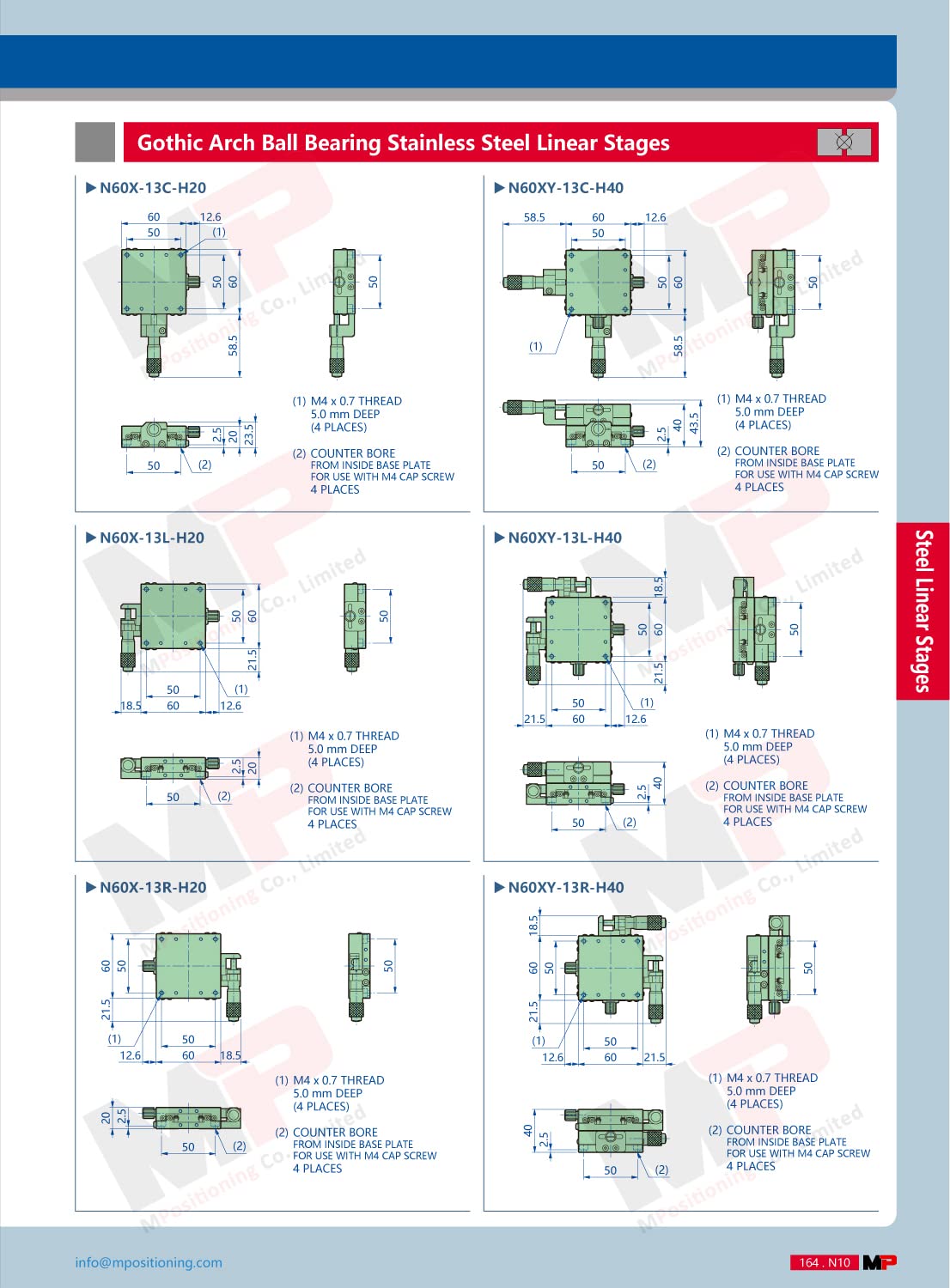

MP60X-13R-H20 Gothic Arch Ball Bearing Stage with Stainless Steel Bodies and Rightside-Mounted Micrometer

The 13 mm travel gothic arch linear translation stage is special in its construction of bearing ways, machined directly into the stainless steel bodies to provide the maximum stability. The Gothic Arch Ball Bearings offer a higher load capacity and smooth motion. The Micrometer Head can be mounted on Center, Leftside or Rightside of the stage. These Gothic Arch Stages can also be stacked for Z-Axis Vertical Stages by a 90 degrees angle bracket and other Multi-Axis Translation Stages (in XY-, XZ- or XYZ-Axis Positioning Stages as you required).

• 13 mm travel in X-Axis, 60 x 60 mm of platform size, load capacity ups to 20 kg
• Gothic arch bearing offers a higher load capacity and smooth motion
• 90 degrees angle bracket for Multi-Axis (Z, XZ or XYZ) configurations
• Bearing ways machined directly into the body of stage for maximum stability
• Available for side- or center-mounted micrometers, Configurable for left- or right-handed operation
