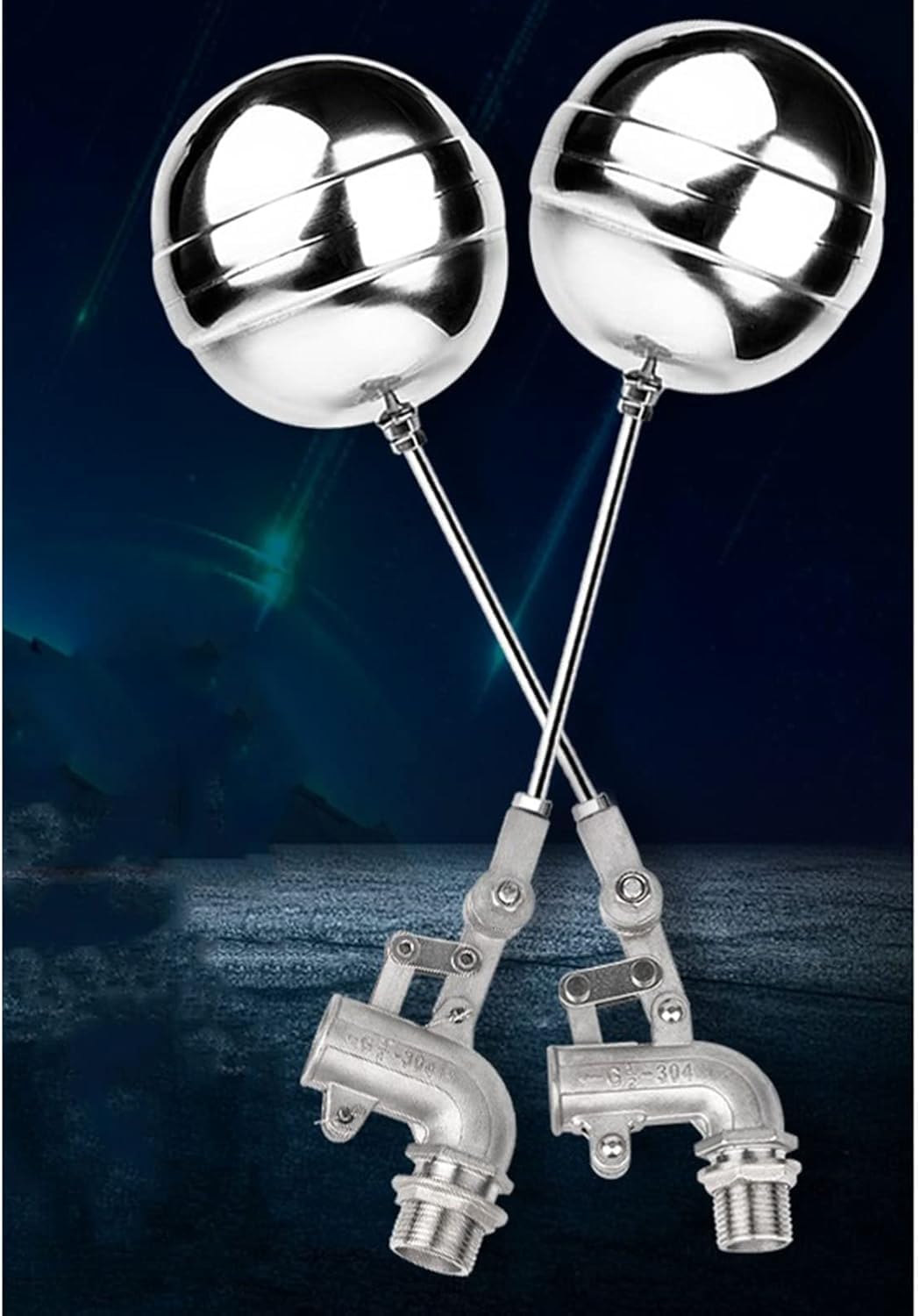

Stainless Steel Float Ball Valves, Ball valve Stainless Steel Elbow Float Valve,360°Adjustable Floating,1pcs(1 Inch)

Product name: 304 stainless steel float valveProduct material: 304# stainless steelUse range: water tank, water tower, poolConnection method: threadWorking medium: tap waterFeatures: acid and alkali, long lifeQuantity: 1pcs.DN15=1/2"DN20=3/4"DN25=1"DN32=1 1/4"DN40=1 1/2"DN50=2"Working principle:When the water level of the water tank is low, the floating ball will decrease with the water level, and the piston in the valve body will be pulled out through the connecting rod of the fixed float ball, so that there will be a gap between the valve body and the piston, and the tap water will enter the water tank.When the water level of the water tank reaches the set height position, the force generated by the floating ball as the water level rises pushes the piston in the valve body into the valve body through the joint. When the buoyancy of the floating ball exceeds the pressure from the water, the rubber gasket is then sealed. The piston of the ring and the water port in the valve body are tightly sealed, and the water tank stops entering water.

• Float Ball valve Port Size: (DN15-DN50) 1/2", 3/4" ,1", 1 1/4", 1 1/2", 2".
• The float valve is designed with high-quality Stainless steel stiffened body and has high strength and durability.
• High quality valve core, high temperature resistance and wear resistance.
• 360° free adjustment: snap-on adjustment, multi-angle adjustable, convenient and fast.
• Wide range of applications,suitable for water tanks,water towers,pumps,etc.mainly for water level control.
