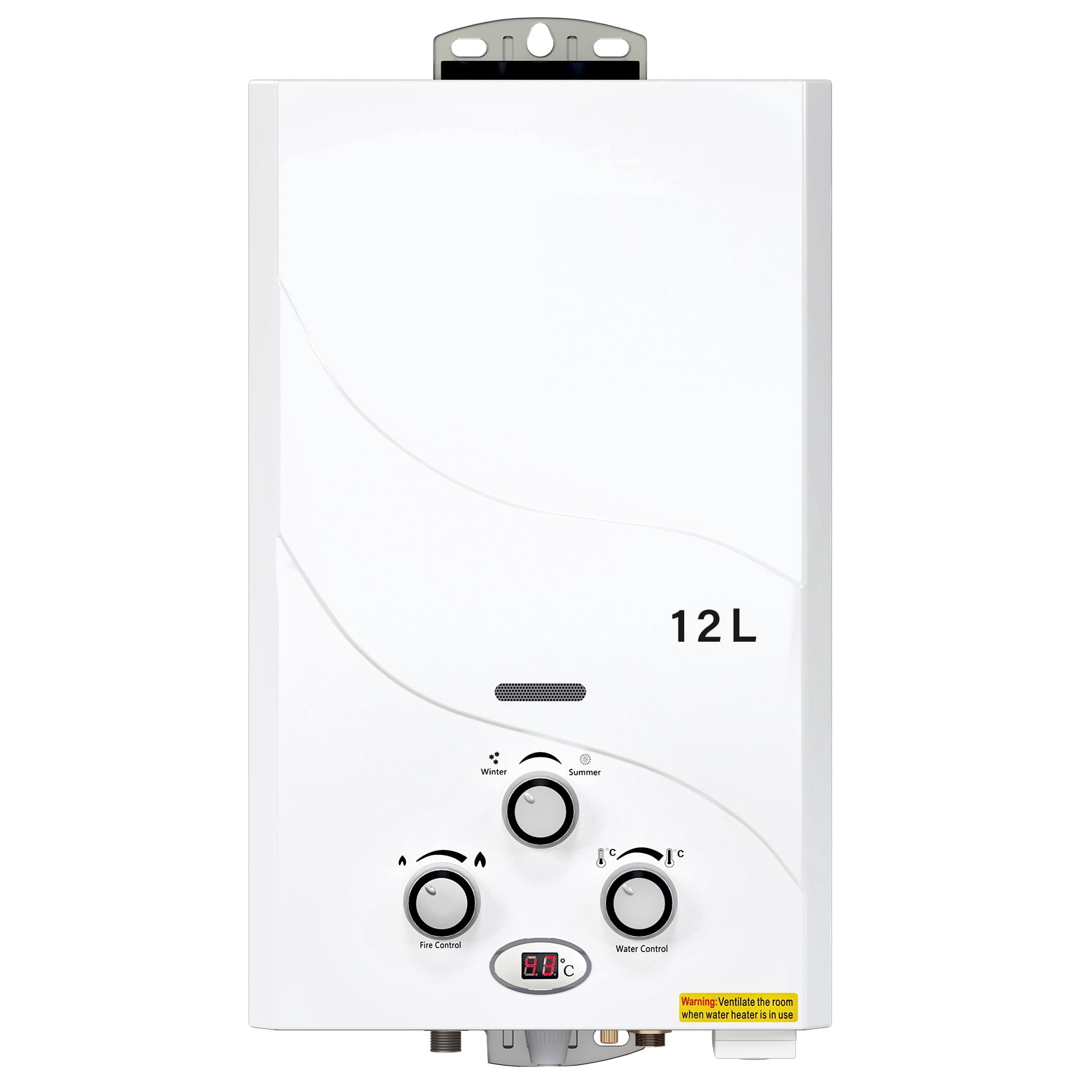

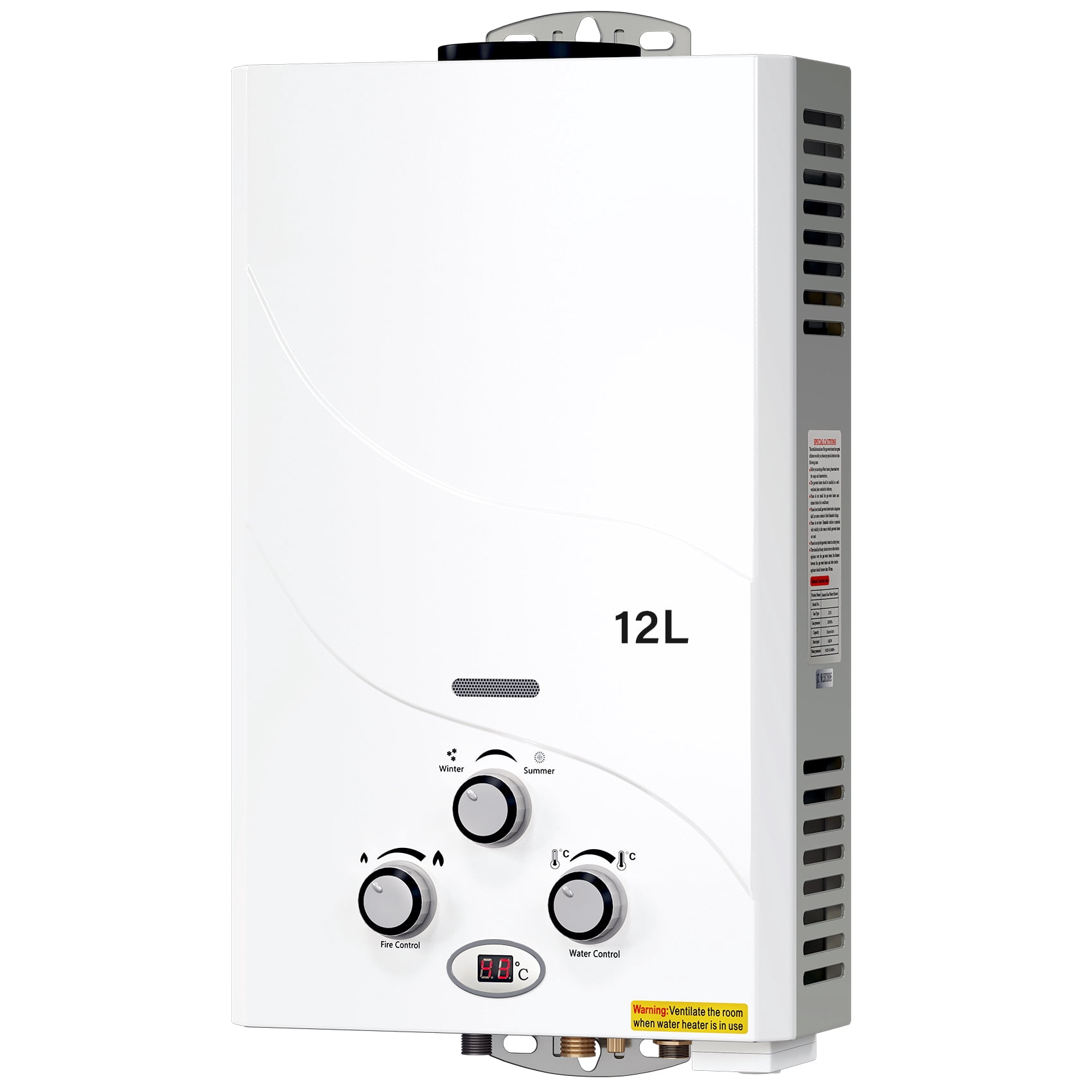

TCFUNDY LPG 3.2 GPM Water Heater with Automatic Ignition, 12L Capacity

Gas Type: LPG Liquid Petroleum Gas (PROPANE)<br> Capacity: 12L/min (3.2Gal), 25 degrees warm water producing rate<br> Working temperature:-8-45℃<br> Thermal input: 24KW<br> 12L Maximum air consumption: 1.52kg/h<br> Thermal efficiency: ≥80.8%<br> Temperature rise: 25℃<br> Minimum working water pressure: 0.025MPa<br> Gas pressure: 2800Pa/ 0.40psi (Very important to set appropriate gas pressure, or the water heater will not ignite.)<br> Gas pipe: G 1/2"<br> Water Inlet: G1/2"<br> Water Outlet: G1/2"<br> NPT 1/2" female to G 1/2" male<br> Vent Type:4.3" Flue Duct<br> <br> Panel Color: White<br> Certification: ISO 9001:2000<br> <br> Automatic ignition system, Flame failure protection device<br> Water &amp; gas combination unit ,Fitted with overheating and pressure safeguard<br> Suitable for both summer and winter<br> 20 min. off self-timer<br> Mains power not required<br> Electrical requirement: DC3V, Automatic electric ignition powered by two (2) size 'D' batteries (batteries not included; No electrical hook up; No standing pilot) <br> Net weight: 20 Lbs<br> Attention:<br> Empty the water tank in cold weather to avoid any crack<br> Do not install the water heater and the exhaust pipe near any flammable or explosive items.<br> Please seal the air inlet, water inlet and water outlet with the attached gasket, do not use raw material tape / PTFE tape to seal, otherwise it will cause air leakage and water leakage.<br>

• 12L Tankless Water Heater: TENGCHANG Tankless water heater with compact design saves more space and energy efficient than traditional water heaters. Using at 3.63 - 116 PSI of water pressure, 3.17 gallons of hot water can be output per minute, the maximum temperature raise is 75℃/167℉. Applicable only propane gas (LPG).

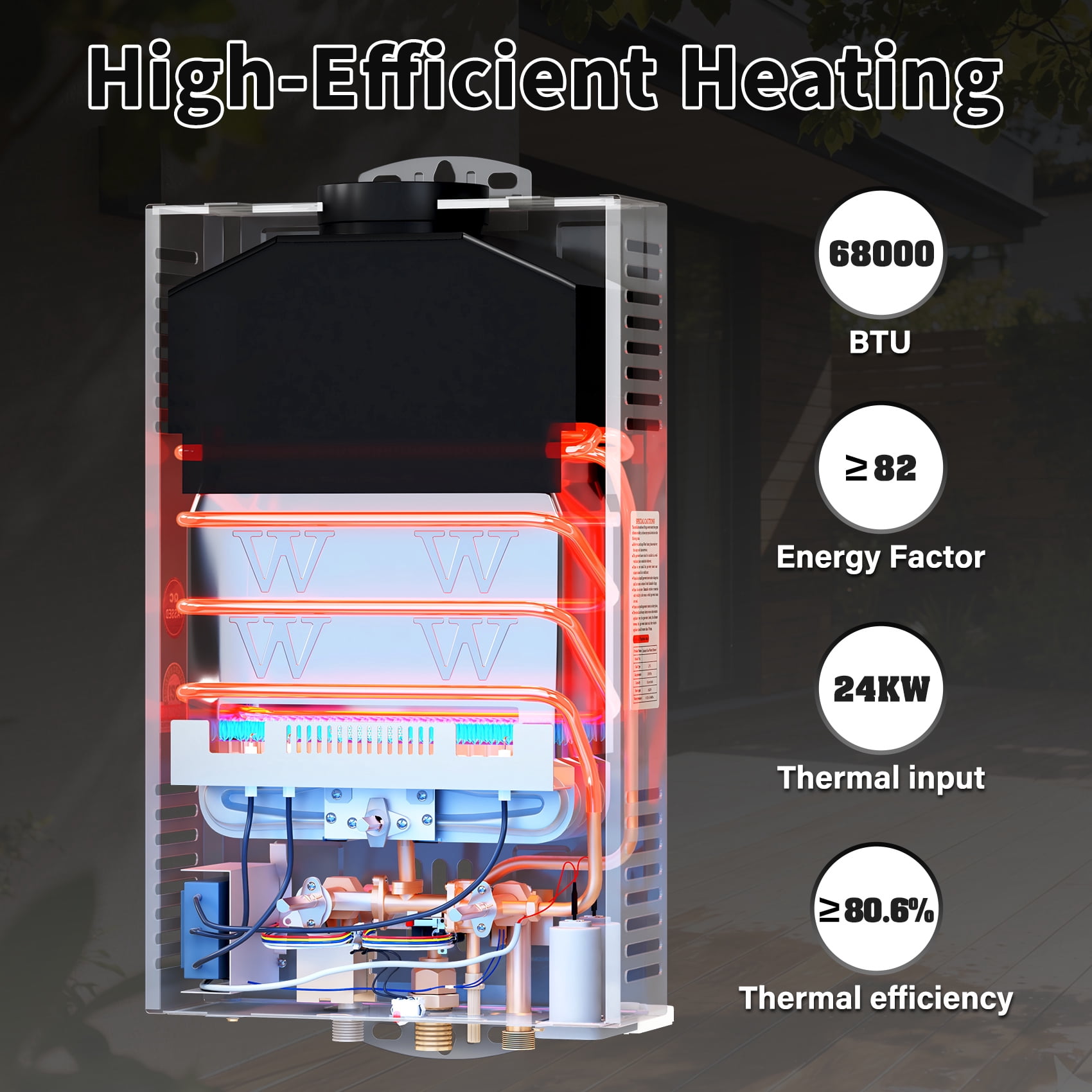

• Efficient & Energey Saving: High efficiency 68000 BTU propane gas tankless water heater delivers 3.17 GPM of instant hot water, no more waiting for long time. The heater exchanger and main burner adopt mostly advanced energy-saving and combustion technology to decrease gas consumption and burning noise.
• Safety of Use: The hot water heater has overheat protection, dry combustion protection, flame failure protection, low water flow protection, high water pressure protection, Manifold Auto Protection. In order to avoid freezing in cold weather or in case of long time no use, please drainout the remaining water after using.
• Working Pressure: Minimum working water pressure: 0.025MPa ;Gas pressure: 2800Pa ;

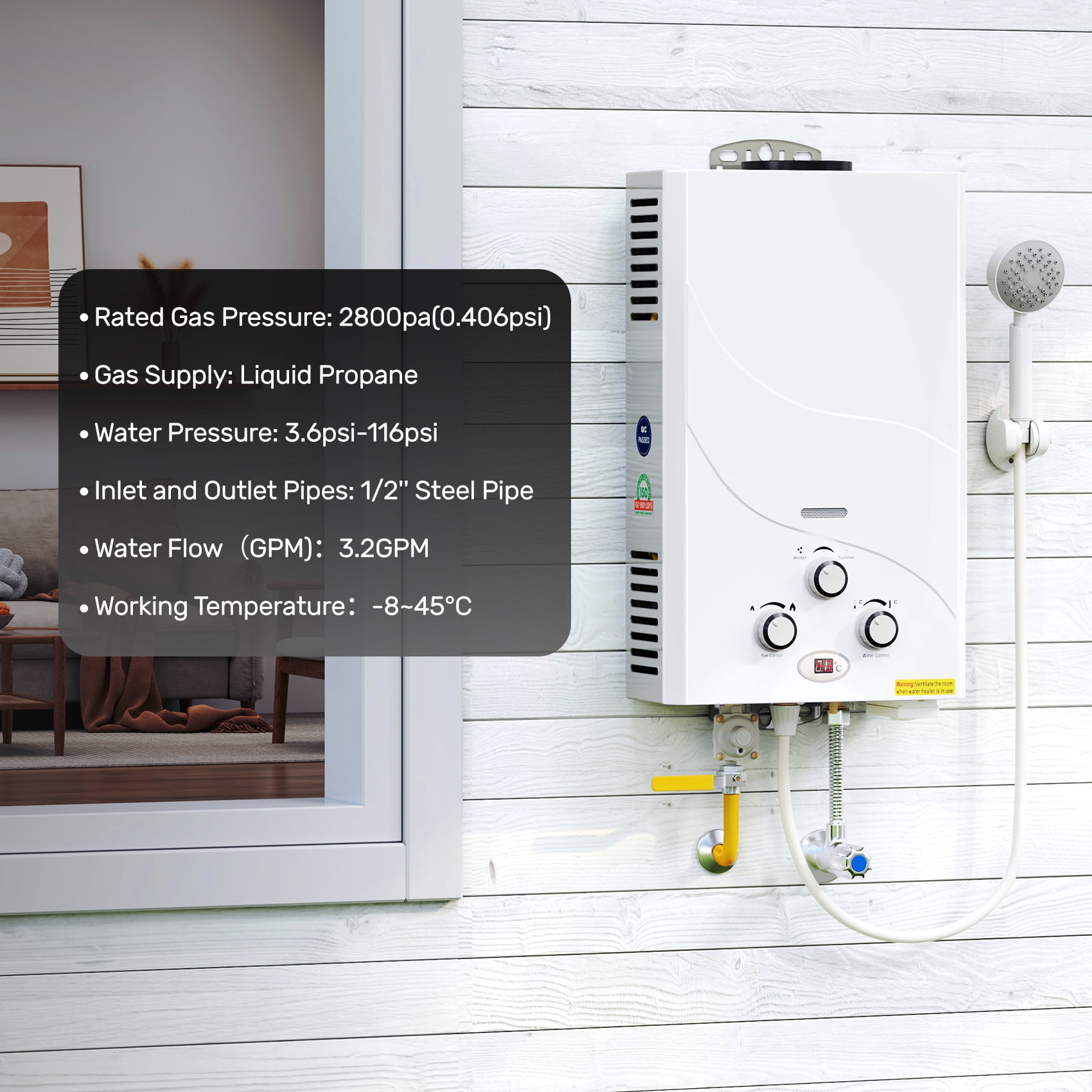

• Lightweight, Compact & Portable Design: Portable water heater compact size and weight 20.7 lbs, easy setup outside. Size: 13.2" x 5.7" x 24.4". Always check gas leakage before operation.To avoid gas leakage caused by improper sealing of the water heater, DO NOT TWINE TEFLON TAPE between gas regulator and gas inlet pipe.
